Basic Wind Turbine Simulation#
A basic wind turbine simulation can be performed
Requires known wind speeds
A power curve can be supplied directly, or a synthetic power curve can be automatically generated
Workflow:
Import required packages
Define turbine constants
Simulate turbine directly with known wind speed data
Plot powercurve and windspeeds and capacity factors over time
import reskit as rk
# Set some constants for later
TURBINE_CAPACITY = 4200 # kW
TURBINE_HUB_HEIGHT = 120 # meters
TURBINE_ROTOR_DIAMETER = 136 # meters
TURBINE_LOCATION = (6.0, 50.5) # (lon, lat)
Simulate turbine directly with known wind speed data#
wind_speeds = [
5.384,
5.323,
5.232,
5.161,
5.439,
6.045,
6.417,
6.611,
6.831,
6.589,
6.929,
7.571,
7.543,
7.12,
7.536,
8.757,
9.776,
9.952,
10.326,
10.875,
11.239,
11.665,
12.086,
12.48,
12.727,
12.969,
13.243,
13.53,
13.658,
13.339,
12.723,
12.11,
11.674,
10.8,
10.696,
9.721,
9.133,
9.581,
9.528,
9.686,
9.492,
9.004,
8.48,
8.159,
7.918,
7.692,
7.204,
7.092,
6.887,
6.568,
6.532,
6.841,
7.354,
7.579,
7.588,
7.859,
8.2,
7.847,
6.918,
6.289,
6.222,
6.223,
5.78,
5.217,
4.379,
4.292,
5.725,
6.609,
5.364,
4.901,
5.979,
]
pc = rk.wind.PowerCurve.from_capacity_and_rotor_diam(capacity=TURBINE_CAPACITY, rotor_diam=TURBINE_ROTOR_DIAMETER)
capacity_factors = pc.simulate(wind_speed=wind_speeds)
capacity_factors
array([0.14190208, 0.1365305 , 0.12875232, 0.1228696 , 0.14685994,
0.206934 , 0.25053008, 0.27524018, 0.3047351 , 0.2723722 ,
0.31818616, 0.41589923, 0.41123225, 0.3449083 , 0.41006914,
0.63459522, 0.82416934, 0.85282688, 0.90355308, 0.95719743,
0.97848641, 0.99253816, 0.99981756, 1. , 1. ,
1. , 1. , 1. , 1. , 1. ,
1. , 0.99992682, 0.99275347, 0.95151289, 0.94275694,
0.81487474, 0.70776469, 0.79058219, 0.7811371 , 0.80887692,
0.77464588, 0.68287471, 0.58099563, 0.51995009, 0.47617543,
0.4363981 , 0.35710433, 0.34091314, 0.31242855, 0.26965369,
0.26503977, 0.30611076, 0.38030558, 0.41723748, 0.41874588,
0.4656284 , 0.52760146, 0.46349303, 0.31667659, 0.23483321,
0.2268853 , 0.22700229, 0.17919551, 0.12749541, 0.06830299,
0.06308339, 0.17381806, 0.27497874, 0.14012643, 0.10293064,
0.19982399])
pc = rk.wind.PowerCurve.from_capacity_and_rotor_diam(capacity=TURBINE_CAPACITY, rotor_diam=TURBINE_ROTOR_DIAMETER)
pc

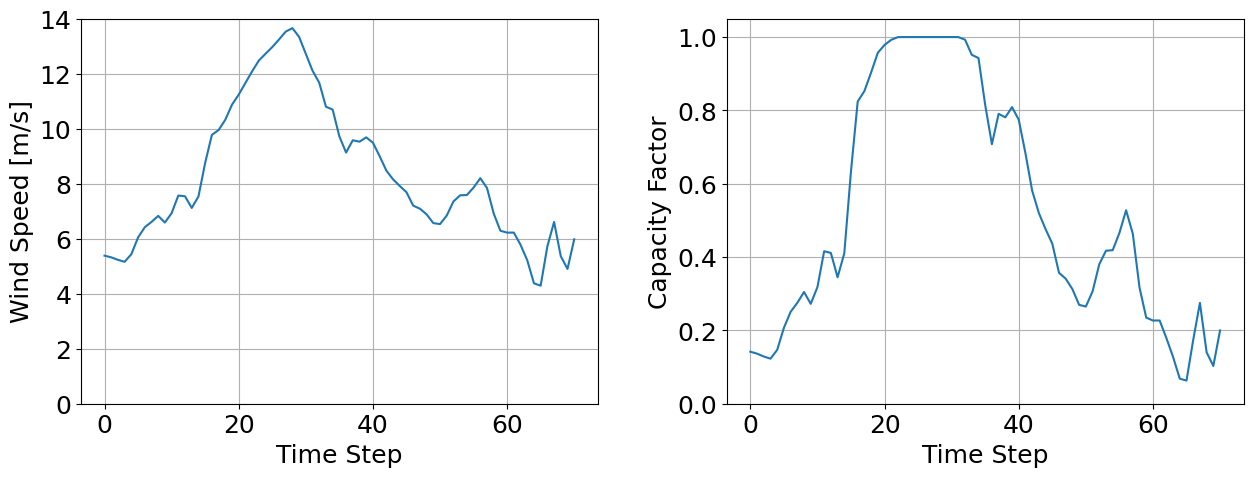

# Comparison of wind speeds and capacity factors plot
import matplotlib.pyplot as plt
plt.rc("font", size=18)
fig, ax = plt.subplots(ncols=2, gridspec_kw=dict(wspace=0.25), figsize=(15, 5))
ax[0].plot(wind_speeds)
ax[0].set_ylabel("Wind Speed [m/s]")
ax[0].set_xlabel("Time Step")
ax[0].grid()
ax[0].set_ylim(0, 14)
ax[1].plot(capacity_factors)
ax[1].set_ylabel("Capacity Factor")
ax[1].set_xlabel("Time Step")
ax[1].grid()
ax[1].set_ylim(0, 1.05)
plt.show()
